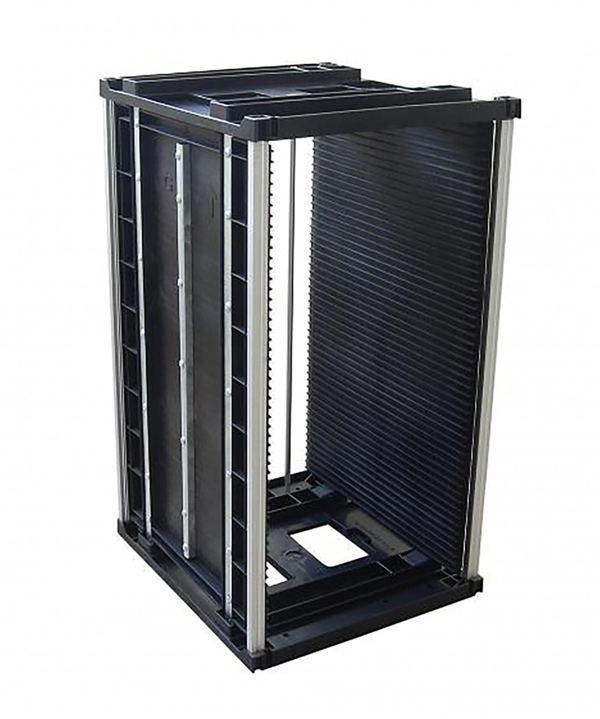

Magazines Racks
Racks para almacenaje de PCBs ajustables, de material antiestático, opciones de ajuste con levas y/o tornillos ajustables. Opciones para alta temperatura y metálicos. Resistencia superficial menor a 10E6Ω. Paneles rígidos en una sola pieza en los modelos. Distintas opciones de slots.
Tabla de selección
| MODEL | Outer Dimensions(mm) | Photo | Adjustable | top/bottom | Maximum | Fix method | Type of | Weight | |||
| L | W | H | width (mm) | panels | Temperature | side panels | kilo | ||||
| AVI-301A | 355 | 315 | 580 | Photo | 50-250 | plastic | 80 deg. C | screw | whole piece | 5.1 | |
| AVI-301A-1 | 355 | 315 | 305 | Photo | 50-250 | plastic | 80 deg. C | screw | whole piece | 3.5 | |
| AVI-301B1 | 355 | 320 | 563 | Photo | 50-255 | metal | 80 deg. C | handle/screw | five pieces panel | 6.0 | |
| AVI-301B1G | 355 | 320 | 563 | Photo | 50-255 | metal | 120 deg. C | handle/screw | five pieces panel | 6.0 | |
| AVI-301B2 | 355 | 320 | 563 | Photo | 50-249 | plastic | 80 deg. C | handle | five pieces panel | 4.5 | |
| AVI-301B2G | 355 | 320 | 563 | Photo | 50-250 | plastic | 120 deg. C | handle | five pieces panel | 4.5 | |
| AVI-301B3 | 355 | 320 | 563 | Photo | 50-255 | metal | 80 deg. C | handle | whole piece | 7.5 | |
| AVI-301B3G | 355 | 320 | 563 | Photo | 50-255 | metal | 120 deg. C | handle | whole piece | 7.5 | |
| AVI-301B3H | 355 | 320 | 563 | Photo | 50-255 | metal | 200 deg. C | screw | whole piece | 7.5 | |
| AVI-301B4 | 355 | 320 | 563 | Photo | 50-255 | metal | 80 deg. C | handle | whole piece | 6.5 | |
| AVI-301B4G | 355 | 320 | 563 | Photo | 50-255 | metal | 120 deg. C | handle | whole piece | 6.5 | |
| AVI-301C | 460 | 400 | 565 | Photo | 70-330 | metal | 80 deg. C | handle/screw | five pieces panel | 8.8 | |
| AVI-301CG | 460 | 400 | 565 | Photo | 70-330 | metal | 120 deg. C | handle/screw | five pieces panel | 8.8 | |
| AVI-301D | 535 | 460 | 570 | Photo | 50-390 | metal | 80 deg. C | screw | two pieces panel | 10.5 | |
| AVI-301DG | 535 | 460 | 570 | Photo | 50-390 | metal | 120 deg. C | screw | two pieces panel | 10.5 | |
| AVI-301E | 535 | 530 | 563 | Photo | 50-460 | metal | 80 deg. C | handle | five pieces panel | 12.3 | |
| AVI-301EG | 535 | 530 | 563 | Photo | 50-460 | metal | 120 deg. C | handle | five pieces panel | 12.3 | |
| Remarks: | |||||||||||
| Surface Resistance: below10E6Ω | |||||||||||
| Side panels of B3, B3G, B4, B4G are whole piece, the side panels of the other types are two or five pieces assembled | |||||||||||
| 301B,301C,301E Guide slot of side panels, depth: 2.8mm, width: 5mm. 301A/A1, 301D, slot width: 7mm | |||||||||||
| FOB Singapore. Leadtime: 3-4 wks, Package: 2 sets/carton, MOQ: 100 sets | Dated: 05.09.2008 | ||||||||||
AVY PRECISION ENGINEERING PTE. es un proveedor basado en Singapore especializado en la fabricación de consumibles y equipos pequeños para la industria electrónica a precios competitivos.
